ViPAC-917PRG/H APLEX 17 Inch Panel PC
- 17” TFT LCD Panel PC
- Intel 6th/7th Core i3/i5/i7 Socket type Processor
- Modular concept and with Fan Design
- Support PCT/RTW/AR Glass Front Bezel IP66
- Option WiFi/BT/Speaker
- Support 2 x Expansion slot
- DC 9~36V Power input, option AC power input
Produktnummer:
ViPAC-917PRG/H
Hersteller-Nr.:
ViPAC-917PRG/H
Hersteller:
APLEX
| Specifications: | |
| System: | |
| CPU | Intel 6th/7th Gen Core i3/i5/i7 processor |
| System Chipset | Intel Q170 |
| Memory | 2 x 260-pin SO-DIMM up to 32GB DDR4 2133 MHz SDRAM |
| IO Port | |
| Rear side I/O port | 4 x USB3.0 type A |
| 2 x RJ45 GbE LAN | |
| 1 x DB9 RS-232/422/485 default RS-232 | |
| 1 x DB9 RS-232 | |
| 1 x DB9 RS-422/485 default RS-485 | |
| 1 x DB15 VGA | |
| 1 x HDMI with Cover | |
| 1 x Line-out/Mic-in | |
| 1 x 2pin Terminal block for external power switch | |
| 2 x LED indication for HDD/System | |
| 1 x System LED indication at front | |
| 1 x 3pin TB Power connector | |
| 1 x Power Switch on/off | |
| Option I/O | 2 x 2W speaker at rear side |
| 4 x USB 2.0 Type A via TB-546 | |
| 2 x DB9 COM port | |
| 1 x 8-bit GPIO (3 in/out/VCC/GND) | |
| Storage Space | |
| HDD | 2 x 2.5” SATA HDD space, support RAID 0, 1, 5 (Easily Accessible storage design) |
| Expansion Slot | 1 x Full-size Mini PCIe on board(PCIe/USB/SATA,SATA by default) |
| 1 x Half-size Mini PCIe on board (PCIe/USB, PCIe by default) | |
| 1 x SIM slot for option(Option wifi/BT/4G and antenna at rear side) | |
| 1 x PCIe x1 and 1 x PCIe x16 slot via TB-560E11E161 (default) | |
| Display | |
| Standard | |
| Display Type | 17” TFT-LCD |
| Max. Resolution | 1280 x1024 |
| High Brightness Optional | |
| Max. Color | 16.7M |
| Luminance (cd/m2) | 350 |
| View Angle | 160(H) / 140(V) |
| Contrast | 800:1 |
| Backlight Lifetime | 50,000 hrs |
| Option | Auto Dimming |
| Touch Screen | |
| Option Auto Dimming | |
| Resistive Touch (USB) | |
| Interface USB | |
| Light Transmission(%) | Over 80% (Resistive) Over 90% (Capacitive) |
| Projected Capacitive Touch (USB) | |
| Power | |
| Power Input | DC 9~36V Power input, option AC power input |
| Construction | Aluminum die-casting front bezel and steel chssis Stainless front bezel (option) |
| Mounting | Panel Mount |
| IP Rating | Front Panel IP66 |

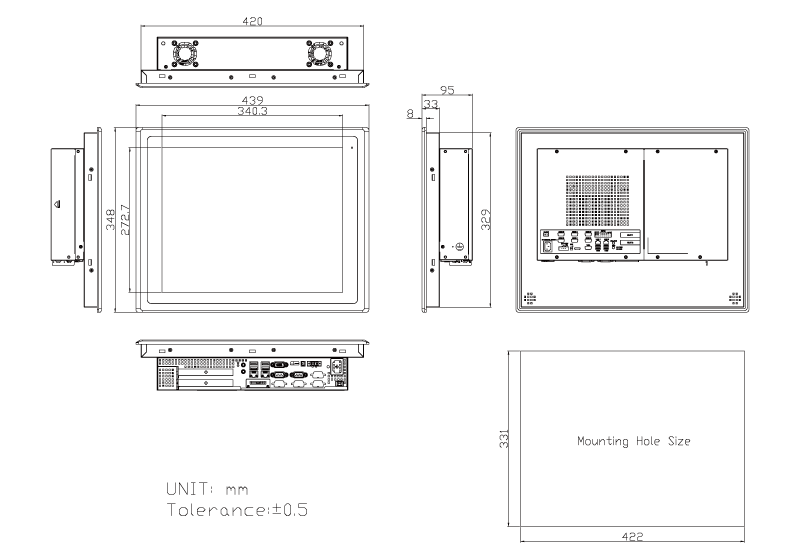

| Dimensions | 439 x 348 x 95 mm |
| Net Weight | 7.6 kg |
| Environmental | |
| Operating Temperature | 0~50°C |
| Storage Temperature | -30~70°C |
| Humidity | 10 to 95% @ 40°C, non- condensing |
| Certificate | CE / FCC Class A |
| Operating System Support | Windows embedded 7 |
| Windows embedded 8.1 | |
| Windows 10 IoT Enterprise | |
| Ordering Information | |
| ViPAC-917R | |
| 17" SXGA Intel Core 6th Core i processor with Q170 chipset, with Fan | |
| design panel PC, 2 x 260-pin DDR4 SO-DIMM slot, 2 x 2.5" HDD/ | |
| SSD space, 1 x PCIex1 and 1 x PCIe x16 slot, resistive touch window, | |
| 9~36VDC power input with adaptor, Alu.die-casting front bezel. | |
| ViPAC-917P | |
| 17" SXGA Intel Core 6th Core i processor with Q170 chipset, with Fan | |
| design panel PC, 2 x 260-pin DDR4 SO-DIMM slot, 2 x 2.5" HDD/SSD | |
| space, 1 x PCIex1 and 1 x PCIe x16 slot, projected capacitive touch, | |
| 9~36VDC power input with adaptor, Alu.die-casting front bezel. |
