ViPAC-815PRG/H APLEX 15 Inch Panel PC

15” TFT LCD Panel PC
Intel Celeron N2930 Processor
Modular Concept and Fanless Design
Support PCT/RTW/AR Glass Front Bezel IP66
Option WiFi/BT/Speaker
Support 2 x Expansion slot
DC 9~36V Power input, option AC power input

Produktnummer: ViPAC-815PRG/H

Hersteller-Nr.: ViPAC-815PRG/H

Hersteller: APLEX

System	CPU Onboard Intel Celeron N2930 (Processor 2MCache,1.83GHz)
System Chipset	SoC
Memory	2 x 204-pin DDR3L SO-DIMM slot up to 8GB
IO Port

Rear side I/O port	4 x USB 3.0 type A
	2 x RJ45 GbE LAN
	1 x DB9 RS-232/422/485 default RS-232
	1 x DB9 RS-232
	1 x DB9 RS-422/485 default RS-485
	1 x DB15 VGA
	1 x HDMI with Cover
	1 x Line-out/Mic-in
	1 x 2 pin Terminal block for external power switch
	2 x LED indication for HDD/System
	1 x System LED indication at front
	1 x 3 pin TB Power connector
	1 x Power Switch on/off

Option I/O	2 x 2W speaker at rear side
	4 x USB 2.0 Type A via TB-546
	2 x DB9 COM port
	1 x 8-bit GPIO (3 in/out/VCC/GND)
Storage Space
HDD	1 x 2.5" SATA HDD Space (Easy Accessible Storage Design)
Expansion
Expansion Slot	1 x Full-size Mini PCIe on board(PCIe/USB/SATA,SATA by default)
	1 x Half-size Mini PCIe on board (PCIe/USB, PCIe by default)
	1 x SIM slot for option(Option wifi/BT/4G and antenna at rear side)
	1 x PCI and 1 x PCIe x1 slot via TB-560P1E11 (default)
Display	Standard / High Brightness Optional
Display Type	15” TFT-LCD / 15” TFT-LCD
Max. Resolution	1024 x 768 / 1024 x 768
Max. Color	16.2M / 16.7M
Luminance (cd/m2)	300 / 1000
View Angle	176(H) / 176(V) / 160(H) / 150(V)
Contrast	2000:1 / 800:1
Backlight Lifetime	70,000 hrs / 50,000 hrs
Option	Auto Dimming / Auto Dimming
Power Input	DC 9~36V Power input, option AC power input

Mechanical
Construction	Aluminum die-casting front bezel and steel chassis, Stainless front bezel (option)

Mounting	Panel Mount
IP Rating	Front Panel IP66

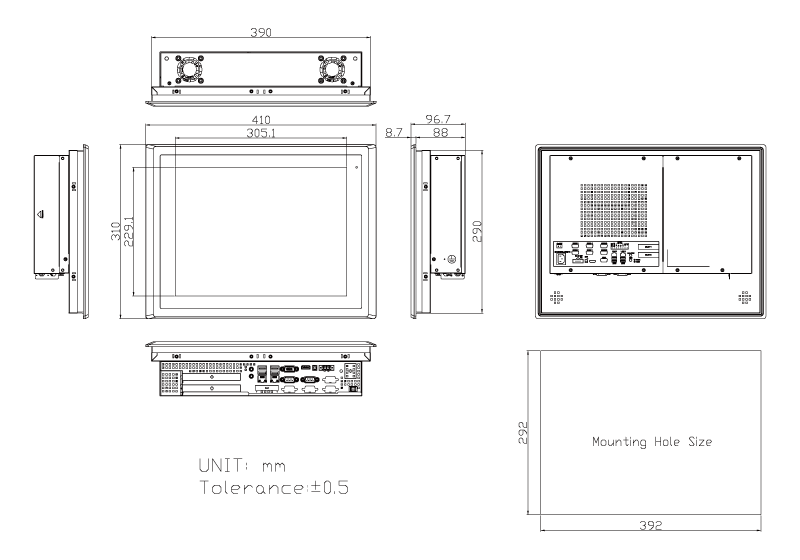

Dimensions	410 x 310 x 96.7 mm
Net Weight	6.3 kg

Operating System Support	Windows embedded 7
	Windows embedded 8.1
	Windows 10 IoT Enterprise


ViPAC-815R
15" XGA Intel Celeron N2930 (1.83.GHz ) CPU, Fanless panel PC,
2 x 204pin DDR3L SO-DIMM slot, 1 x 2.5" HDD/SSD space,
2 x PCIex1 slot, resistive touch window, 9~36VDC power input with
adaptor, Alu.die-casting front bezel.

Downloads "ViPAC-815PRG/H APLEX 15 Inch Panel PC"

Download ViPAC-815PRGH_V1.3
